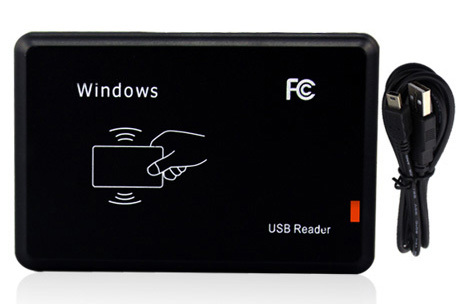

ISO14443A Reader

Item No.: 2
The ST-HF-01 is a high-frequency reader/writer based on the ISO14443A standard. With its compact dimensions (104 x 68 x 10mm), it is suitable for various scenarios. The reader supports a 13.56MHz operating frequency, allowing stable and rapid reading of I
  • Product Model: ST-HF-01
  • Size: 104 x 68 x 10mm
  • Operating Frequency: 13.56MHz
  • Supported Card Types: ISO14443A standard cards
  • Communication Interface: USB 2.0
  • Power Supply: USB-powered
  • Operating Temperature: -20°C to 70°C
  • Storage Temperature: -40°C to 85°C
  • Reading Distance: Up to approximately 5cm

Usage and precautions
1.1 use/install methods
The data line is connected to the corresponding interface of the computer at one end and the communication port of the card reader at the other end.
The indicator light of the card reader is red to indicate that the card reader is in a state of waiting to be swiped.
Note: test card reader to read the label method: open the output of the computer software (such as notepad WORDEXCEL editor), near the card reader, output software cursor displayed label card at this time.
1.2 test the method of connecting the card reader to the computer
The reader enters the card swiping state, opens the "device manager" of the computer, and checks whether there is any anthropological input device in the menu of options. If there is any, it indicates that the device has been successfully connected to the computer.
1.3 matters needing attention and simple troubleshooting
Ø if the data cable directly insert the plug, will cause the card is not successful.
Ø factors affecting card read distance is more, by using different protocols, different antenna design, the surrounding environment (mostly metals) and different CARDS, etc., will affect the actual card read distance.
Ø if card reader card read distance is too long, will cause the card read instability or failure, to avoid in the critical state (just can read card) card. Two readers that are too close will also interfere with each other.
Ø card read way, it is recommended that the card is on the card reader close to nature, with a card from the side quickly read card method is not desirable, to pay by credit card does not guarantee success.
Ø card, mouse operation, and is not recommended to avoid transmitting data error.
Ø card reader and computer communication between the cable length should be less than 15 meters.
Whether Ø card have no reaction, interface plug; Whether radiofrequency CARDS are compatible RFID CARDS; Whether the rf card is broken; Is there any other rf card within the scope of card reading?
Ø forwarding data error: when the card is operating a mouse; Read the card in the environment of strong electromagnetic interference; Whether the communication cable between the card reader and the computer is too long; Read the card in the critical state.
2 application fields
Film and television are widely used in Internet cafes, member management, KTV VOD VOD system, the fast food restaurant meal, office/mall/bath center locker security control, all kinds of security system and the production process control, data acquisition, etc.
